我司(si)是ALPS授權代(dai)理商，ALPS系列產(chan)品(pin)均有在售，需要了解價格、包裝數，交(jiao)期(qi)以及產品(pin)資料請咨詢在線客服(fu)！
|
產品編號 |
照片 |
行程 |
操作部方向 |
電路數 |
接點數 |
動作力 |
切換時限 |
焊接方法 |
操作 |
框腳形狀 |
定位銷 |
尺寸(W×D×H) |
|

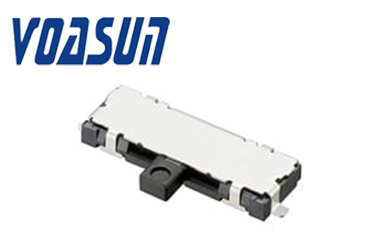

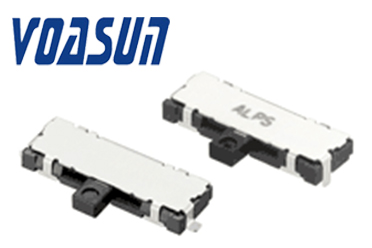

SSAG130100 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side), 1.5N (Lock side) |
Not specified |
Reflow |
Left-side recoil |
For PC board insert |
Without |
3.0×9.05×1.15mm |
|
SSAG130200 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side), 1.5N (Lock side) |
Not specified |
Reflow |
Left-side recoil |
For PC board insert |
With |
3.0×9.05×1.15mm |
|
SSAG130300 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side), 1.5N (Lock side) |
Not specified |
Reflow |
Left-side recoil |
Flat |
Without |
3.0×9.05×1.15mm |
|
SSAG130400 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side), 1.5N (Lock side) |
Not specified |
Reflow |
Left-side recoil |
Flat |
With |
3.0×9.05×1.15mm |
|
SSAG230100 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side), 1.5N (Lock side) |
Not specified |
Reflow |
Right-side recoil |
For PC board insert |
Without |
3.0×9.05×1.15mm |
|
SSAG230200 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side), 1.5N (Lock side) |
Not specified |
Reflow |
Right-side recoil |
For PC board insert |
With |
3.0×9.05×1.15mm |
|
SSAG230300 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side), 1.5N (Lock side) |
Not specified |
Reflow |
Right-side recoil |
Flat |
Without |
3.0×9.05×1.15mm |
|
SSAG230400 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side), 1.5N (Lock side) |
Not specified |
Reflow |
Right-side recoil |
Flat |
With |
3.0×9.05×1.15mm |
|
SSAG330100 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side) |
Not specified |
Reflow |
Double-side recoil |
For PC board insert |
Without |
3.0×9.05×1.15mm |
|
SSAG330200 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side) |
Not specified |
Reflow |
Double-side recoil |
For PC board insert |
With |
3.0×9.05×1.15mm |
|
SSAG330300 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side) |
Not specified |
Reflow |
Double-side recoil |
Flat |
Without |
3.0×9.05×1.15mm |
|
SSAG330400 |
 |
1.5mm |
Horizontal |
1 |
3 |
1N (Recoil side) |
Not specified |
Reflow |
Double-side recoil |
Flat |
With |
3.0×9.05×1.15mm |

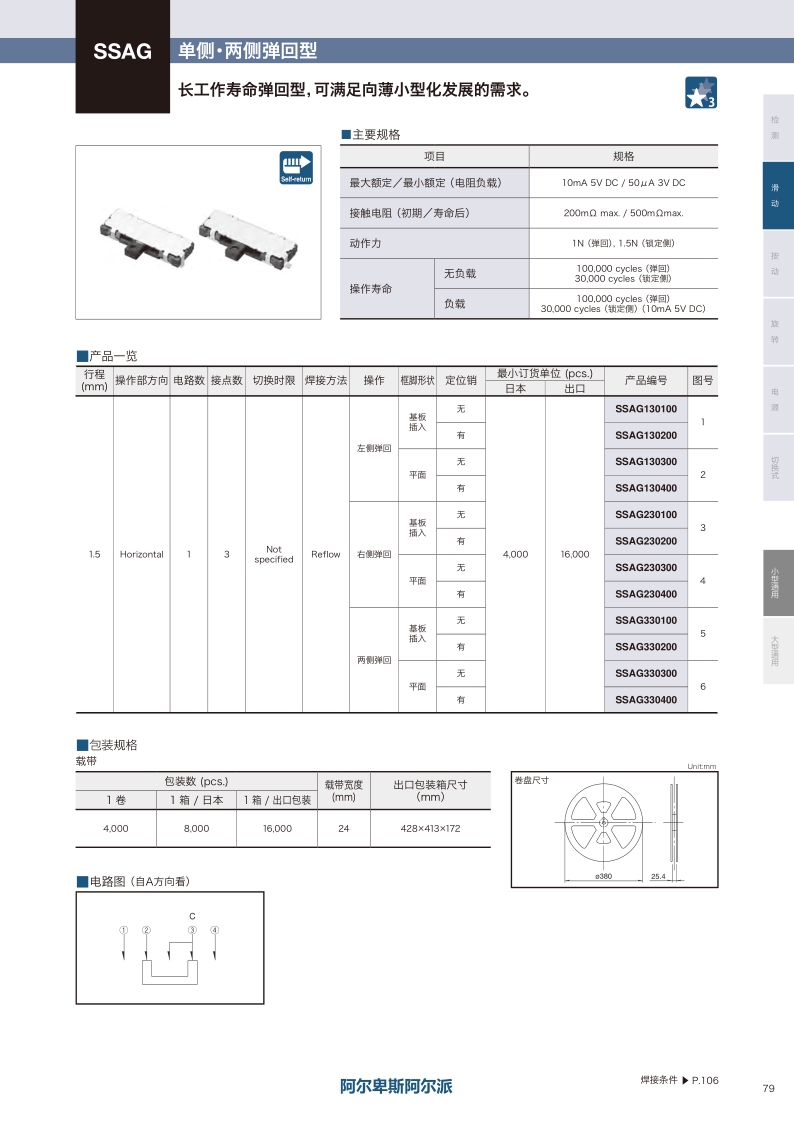

SSAG系列用途：
Mobile:智能手機(ji) 平板電腦(nao), 頭戴(dai)(dai)式耳機(ji) 可穿戴(dai)(dai)的, 筆(bi)記本電腦(nao)&周邊設備
Energy / Industrial:機(ji)器人 無人機(ji), 工(gong)業(ye)設(she)備, 轉換器
Game:家庭用(yong)便攜設備, VR AR
Healthcare:健康(kang)器(qi)具, 介護(hu)器(qi)具, 分析 檢(jian)查器(qi)具
