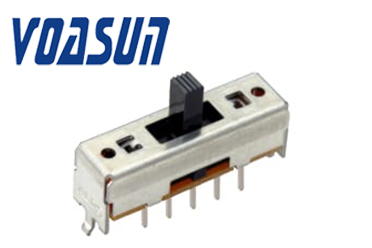

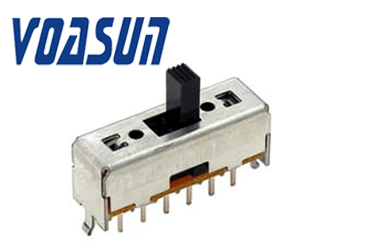

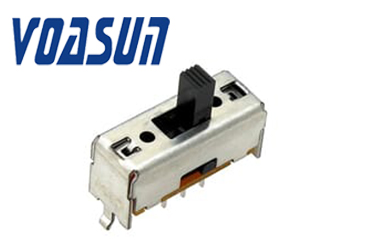

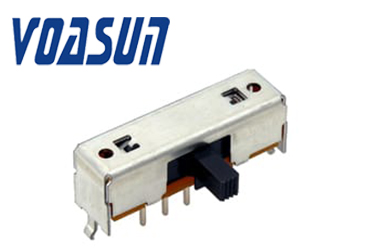

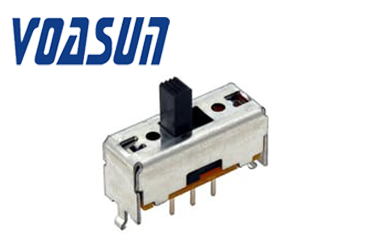

SSSU系列——ALPS滑動開關

鍵種(zhong)類豐富的(de)大(da)(da)型(xing)通用型(xing)，操(cao)作(zuo)方向：Vertical Horizontal ? 安(an)裝高(gao)度：8.5mm ? 行(xing)程：3.0mm ? 最(zui)大(da)(da)額定值：0.1A 30V DC ? 電路數：1/2/4-poles。

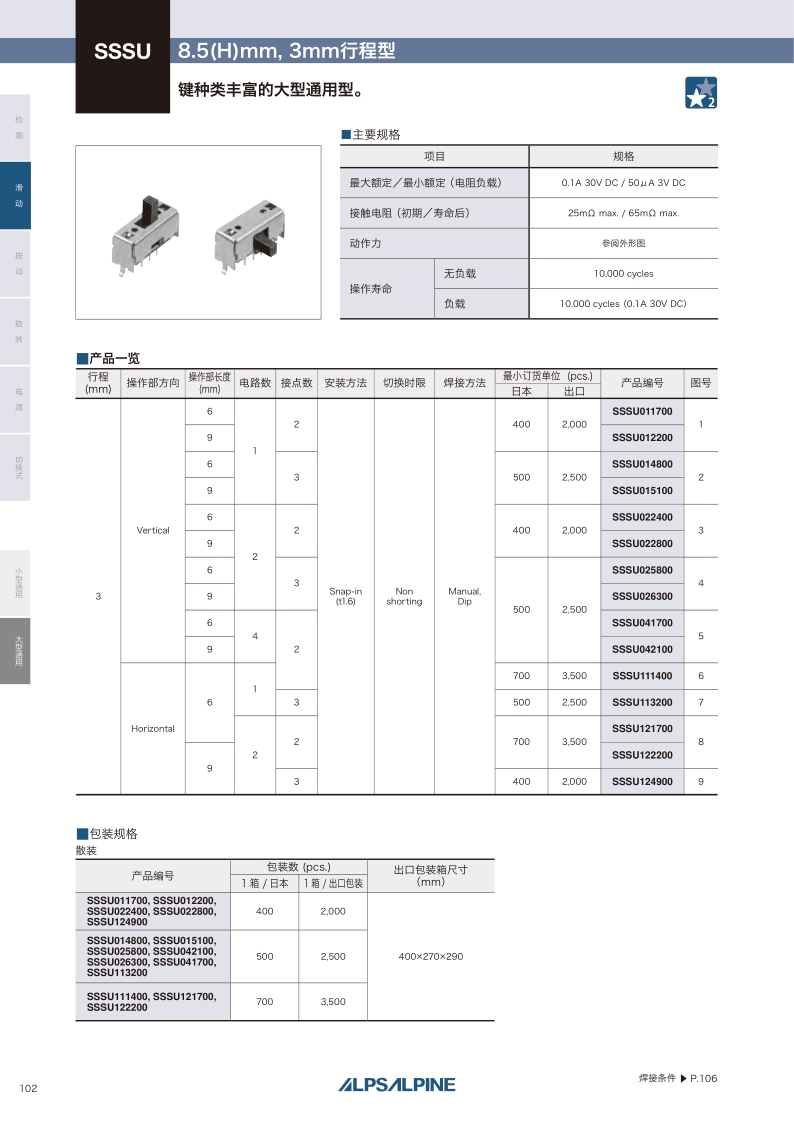

規格書下載

產品詳情

我(wo)司是(shi)ALPS授(shou)權代理商，ALPS系列產品均有(you)在(zai)售，需要了解(jie)價格(ge)、包裝數，交期以及產品資(zi)料請咨詢在線客(ke)服！

產品編號	行程	操作部方向	操作部長度	電路數	接點數	動作力	安裝方法	切換時限	焊接方法	尺寸(W×D×H)
SSSU011700	3.0mm	Vertical	6.0mm	1	2	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	18.5×7.0×8.5mm
SSSU012200	3.0mm	Vertical	9.0mm	1	2	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	18.5×7.0×8.5mm
SSSU014800	3.0mm	Vertical	6.0mm	1	3	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	24.5×7.0×8.5mm
SSSU015100	3.0mm	Vertical	9.0mm	1	3	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	24.5×7.0×8.5mm
SSSU022400	3.0mm	Vertical	6.0mm	2	2	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	18.5×7.0×8.5mm
SSSU022800	3.0mm	Vertical	9.0mm	2	2	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	18.5×7.0×8.5mm
SSSU025800	3.0mm	Vertical	6.0mm	2	3	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	24.5×7.0×8.5mm
SSSU026300	3.0mm	Vertical	9.0mm	2	3	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	24.5×7.0×8.5mm
SSSU041700	3.0mm	Vertical	6.0mm	4	2	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	21.5×7.0×8.5mm
SSSU042100	3.0mm	Vertical	9.0mm	4	2	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	21.5×7.0×8.5mm
SSSU111400	3.0mm	Horizontal	6.0mm	1	2	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	18.5×7.0×8.5mm
SSSU113200	3.0mm	Horizontal	6.0mm	1	3	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	24.5×7.0×8.5mm
SSSU121700	3.0mm	Horizontal	6.0mm	2	2	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	18.5×7.0×8.5mm
SSSU122200	3.0mm	Horizontal	9.0mm	2	2	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	18.5×7.0×8.5mm
SSSU124900	3.0mm	Horizontal	9.0mm	2	3	Refer to the dimensions.	Snap-in (t1.6)	Non shorting	Manual, Dip	24.5×7.0×8.5mm
